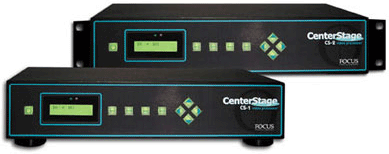

The CenterStage CS-1 영상프로세서
영상 프로세서입니다.
DVI가 옵션으로 장착이 가능하구요. 미국 인터넷 쇼핑가격은 정말 저렴한 1549.00 USD 이군요.
300만원이하면 정말 짱~! 일듯 싶은 생각이 드네요. DVI욥션 포함해서 안그렇습니까..?
설명으론 훌륭할 듯 한데.. 그쵸.?
Video Processing Technology
3:2 Pulldown detection and correction for best viewing of film-based sources
Video doubling, tripling, and quadrupling of input television lines
Infrared Remote Control, RS232/422 control, backlit keypad
Supports all combinations of input and output aspect ratios of 4:3 and 16:9
Input controls over contrast, brightness, saturation, and hue
DVI digital, RGB and component outputs
2 switchable channels each of composite, Y/C, and component input
Active buffered, multi-resolution and HDTV pass-through
Auto-saving for input adjustments
Advanced comb filter input
Noise Reduction; luminance and chrominance
Input auto save memory for all adjustments including horizontal and vertical sizing and positioning
Input Stage
Horizontal Range NTSC 15.734 kHz, PAL 15.625 kHz Vertical Range NTSC 30 Hz, PAL 25 Hz Color Standards NTSC, PAL and PAL 60 Synchronization 1 wire, composite video and sync
2 wire, Y/C, sync on Y
3 wire, component, sync on G/Y Connectors Composite RCA, Y/C, 4-pin mini-din female, component (Y Pb Pr) RCA, DVI digital (optional), RGB and component outputs, Computer Pass-Through HD-15 male (VGA) Aspect Ratios 4:3 (standard format), 16:9 (widescreen format), 4:3 (letterbox) Memory Auto-save input parameters Horizontal Range NTSC 31-64 kHz, PAL 31-64 kHz Vertical Range NTSC 60 Hz, PAL 50 Hz Synchronization 3 wire, RGB sync on G/Y
4 wire, RGB, separate sync
5 wire, RGB, H sync, V sync Connectors HD-15 female (VGA) Aspect Ratios 4:3, 16:9
Adjustments
Sync Configuration-Selects the configuration of the output sync Contrast Brightness, Saturation, Hue, Component Termination Selects 75 Ohm termination for all inputs, Output Resolution Selects output resolution Sizing and Positioning Horizontal and vertical, Screen Adjustable in any combination, Image Positioning Top justified, Bottom justified, Centered.
Output Resolutions
HD 16:9 Display Monitor Resolution
1280 x 720p
60″ / 50″ 16:9 Plasma Resolutions
1366 x 768 (60″/50″)
1280 x 768 (50″)
852 x 480 (50″)
Projector / 4:3 Resolutions
1024 x 768 (XGA)
1365 x 1024 (D-ILA)
42″ 16:9 Plasma Resolutions
1024 x 1024 (42″)
852 x 480 (42″ – NTSC Only)
852 x 576 (42″ – PAL Only)
Specifications
17” x 9” x 1.75”, 12 lbs., rackmount ears optional Power Usage 120V @ 0.25A/240V @ 0.125A Optional Accessories HD15 to BNC Cable (6 ft.) Warranty Three years
Centerstage CS-1, Remote Control, Power Cable, Composite Video Cable, S-Video Cable, VGA Pass-Through Cable, BNC-to-RCA Adapters, Centerstage CS-1 Manual
Recommended Accessories
Precision Video VGA Breakout Cable
Available in lengths from 5″
