Cyrus는 소리에 대한 뚜렷한 철학을 바탕으로 탁월한 음악성을 이끌어내는 고유의 기술력과 선도적인 디자인 감각으로 영국과 유럽의 오디오 애호가들 사이에서 오랜 기간 사랑 받는 stdady – seller 오디오를 창조해 왔습니다.
또한 영국 특유의 합리적인 사고를 실현해낸 단단하면서도 고급스러운 제품 디자인과 수가공 마감작업은 15년이 넘도록 변함없이 동사의 정체성을 지켜오고 있습니다.
과장 되지 않은 담백하고 자연스러운 음의 재생과 사용상의 실용성을 겸비하도록 지원하는 다양한 업그레이드 옵션은 Cyrus를 선택하는 많은 합리적인 오디오 애호가들의 자랑 거리입니다.
인티앰프에서 분리 앰프로의 다양한 확장 옵션 지원과 MC-BUS를 통한 시스템 통합 컨트롤, DA컨버터, Phono앰프, AV앰프, 케이블, NXT 평판 스피커, 알루미늄 오디오랙 등 합리적인 가격대의 다양한 옵션과 고품질 제품군은 모든 제품을 오디오의 본가인 영국에서 디자인, 개발, 생산하는 영국 종합 오디오 업체로서의 당당한 명예라 할 수 있습니다.

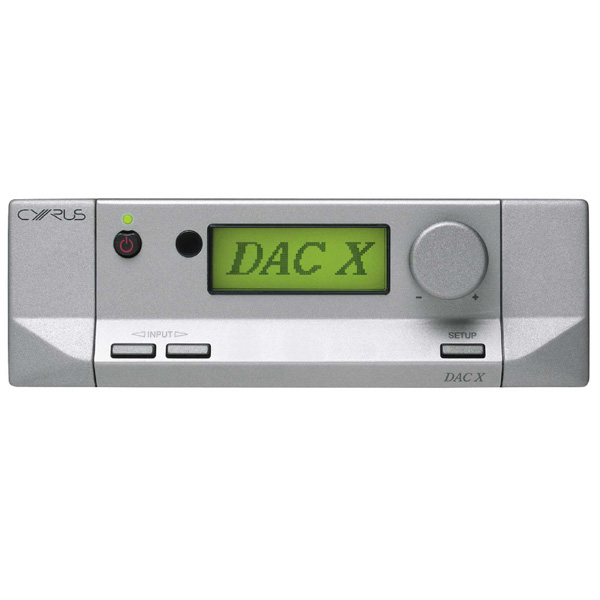

영국 사이러스사의 최신 DAC 입니다.
Technical Information
Many Cyrus owners recollect the impact that the hi-fi industry felt a decade ago when Cyrus launched the Discmaster/Dacmaster/PSX-R combination. The combination set new performance standards for CD replay, featuring leading edge digital technology presented in a unique 4-box format.
The brief for the DAC X+ was to bring this 4-box formula up to date by taking the best DAC technology available today and building a class-leading stereo digital decoder to partner the CDXT SE2 and a pair of PSX-Rs. Adding a separate analogue pre-amplifier into the DAC X+ chassis upgrades the DAC X+ to the DAC XP+ which becomes the control centre for a high-end stereo system.
D/A Conversion: At the heart of a quality D/A converter is the circuit that converts the digital source signals to analogue. Careful design of this circuit is essential to retrieve the true dynamics of the source signal and to minimise undesirable artefacts such as noise and distortion. The DAC X+ achieves this with a two stage up-sampling design where all sources are initially up-sampled to 192k before analogue conversion by quad high-precision 24-bit converters operating in a fully balanced configuration. The technical specifications endorse the quality of this stage with class-leading performance for THD and noise. The elevated 192k sample rate permits our designers to use far less aggressive analogue filtering techniques to remove undesirable out-of-band digital noise.
Jitter reduction: All audiophiles understand that low jitter is an essential requirement for the clocks and data signals passed within a D/A converter. In the DAC X+ the sophisticated re-clocking circuit measures the precision of incoming digital signals to determine the quality of the input source. High accuracy sources such as the CDXT SE2 CD transport are digitally re-clocked by a close tolerance circuit with triple quartz references. For signals from low accuracy sources such as personal computers the circuit automatically relaxes the re-clocking precision to ensure reliable signal recovery.
Sample rate handling – The DAC X+ is prepared for the wide range of sample rates available from today’s digital sources and beyond. Group 1 close tolerance performance is available for 32k, 44.1 k, 48k, 64k, 88.2k, 96k, 128k, 176.4k, 192k source material. For sources outside of Group 1 requirements, any sample rate in the range 32k – 192k is accepted. Non-stereo waveforms (surround sound etc) are identified and suppressed to avoid undesirable digital noise.
Digital output: An optical digital output provides a useful digital feed to send the signal from the selected source to digital recording devices or to a multi-channel surround sound decoder.
Power supplies: The DAC X+ power supply is a traditionally built linear design, with an oversize toroidal power transformer including twin windings dedicated to the digital and analogue sections and entirely separate power regulation for the DAC and analogue filter sections. Two-stage regulation is used for critical stages with remote shunt regulators located within the heart of the audio circuitry.
DAC XP+ upgrade: By returning the DAC X+ to the factory, a complete high-end pre-amplifier stage with separate power supply can be added, bringing the DAC X+ up to full DAC XP+ specification.
Electrical
Digital Inputs – 6 SPDIF (4 coaxial, 2 optical)
D/A Outputs (unbalanced) – Fixed level stereo line output (via RCA jacks)
D/A Outputs (balanced) – Dual balanced (XLR jacks)
Power Supply – 75VA toroidal transformer
Communications – MC-BUS™ System BUS
Specifications
Digital Input – 500mV pk-pk 75 Ω
Digital Output – 500mV pk-pk 75 Ω
Sample rate tolerance – +/-1 00ppm of 32/44.1 /48kHz and multiples to 192k
Sample rate tolerance (wide) – Any sample rate in range 32k – 192k
Unbalanced Output – 2.3V 47 Ω
Balanced Output – 4.4V 47 Ω
THD+N – 0.002% (ref 0dBFS)
S/n ratio – 11 5dBA
Dimensions – (H x W x D) 73 x 215 x 360 (mm)
Finish – Quartz Silver and Brushed Black
Weight – 3.8kg
