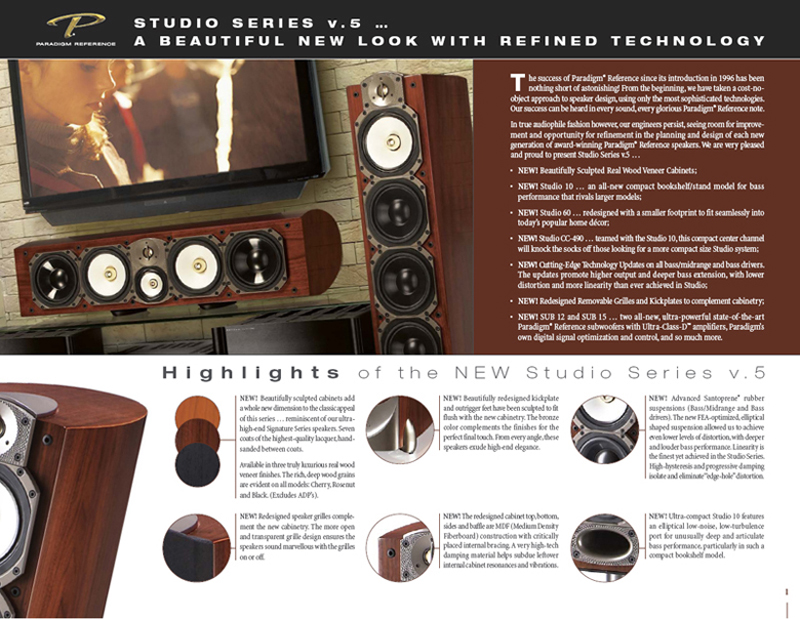

Highest Standard of Technological Excellence
Studio speakers offer the highest standard of technological excellence resulting
in a breathtaking quality of music reproduction that captures the essence of the
original sound.
Equally important is the speakers’ performance in home theater. Movie soundtracks
are a complex mix of dialog, music and action effects. This requires a level of articulation and spatial representation that few movie theaters are capable of reproducing. Studio speakers exceed typical high-end home theater sound by expanding the sheer size, scale and dynamics of the acoustic soundstage. While listening to a Studio system The Perfect Vision magazine put it best: “It’s just like being at the movies — except the sound is
a lot better.”*
*Nicholas Bedworth, The Perfect Vision on the Studio 100
G-PAL™ Gold-Anodized Pure-Aluminum Domes. Exceptionally rigid low-mass domes with treated textile suspensions ensure remarkably uniform and instantaneous power response. The elevated position of the dome provides better ‘air’ and frequency response that is smooth, pure and clear.
S-PAL™ Satin-Anodized Pure-Aluminum Midrange and Bass / Midrange Cones. Very high stiffness-to-mass ratio and outstanding internal damping. The result? Remarkable midrange clarity, superb extended bass response and freedom from unwanted resonances and distortions.
IMS/SHOCK-MOUNT™ Isolation Mounting System. This unique butyl-rubber driver fastening system found on all Studio Series drivers is a progressive system of critically placed isolation inserts and gaskets that decouple drivers from the speaker enclosure itself. This leading-edge ‘baffle-less’ technology reduces driver / enclosure interactions to inaudible levels.
High-Velocity Low-Noise Aluminum Ports. Bass efficiency and minimum turbulence distortion for cleaner and more articulate bass response.
Beautifully Sculpted Cabinets with Real Wood Veneer Finishes. Add a whole new dimension to the classic appeal of this series. Seven coats of the highest quality lacquer, hand-sanded between coats. Available in four luxurious real wood veneer finishes.

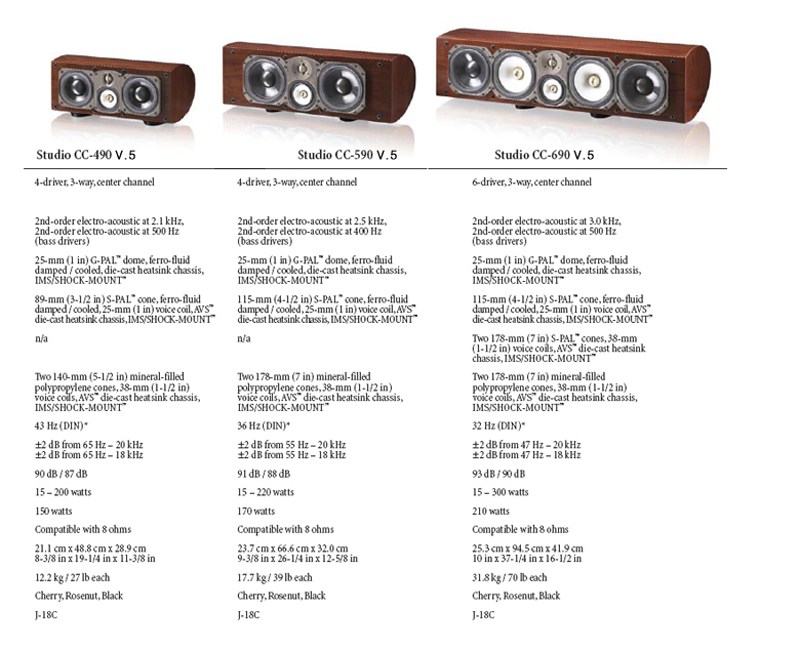

| SPECIFICATIONS |
| Design |
6-driver, 3-way center channel |
| Crossovers |
2nd-order electro-acoustic at 3.0 kHz;
2nd-order electro-acoustic at 500 Hz
(bass drivers) |
| High-Frequency Driver |
25-mm (1 in) G-PAL™ dome, ferro-fluid
damped / cooled, die-cast heatsink chassis,
IMS/SHOCK-MOUNT™ |
| Midrange Driver |
115-mm (4-1/2 in) S-PAL™ cone, ferro-fluid
damped / cooled, 25-mm (1 in) voice-coil,
AVS™ die-cast heatsink chassis,
IMS/SHOCK-MOUNT™ |
| Bass / Midrange Drivers |
Two 178-mm (7 in) S-PAL™ cones,
38-mm (1 in) voice-coils,
AVS™ die-cast heatsink chassis,
IMS/SHOCK-MOUNT™ |
| Bass Drivers |
Two 178-mm (7 in) mineral-filled
polypropylene cones, 38-mm (1-1/2 in)
voice-coils, AVS™ die-cast heatsink
chassis, IMS/SHOCK-MOUNT™ |
| Low-Frequency Extension* |
32 Hz (DIN) |
Frequency Response:
On-Axis
30° Off-Axis |
±2 dB from 47 Hz – 20 kHz
±2 dB from 47 Hz – 18 kHz |
| Sensitivity – Room / Anechoic |
93 dB / 90 dB |
| Suitable Amplifier Power Range |
15 – 300 watts |
| Maximum Input Power† |
210 watts |
| Impedance |
Compatible with 8 ohms |
| Height, Width, Depth |
25.3 cm x 94.5 cm x 41.9 cm
10 in x 37-1/4 in x 16-1/2 in
(heights include spikes or outrigger
feet; widths exclude feet) |
| Weight (unpacked) |
31.8 kg / 70 lb each |
| Finishes |
Cherry, Rosenut, Black |
| Paradigm Stand (sold sep.) |
J-18C |
